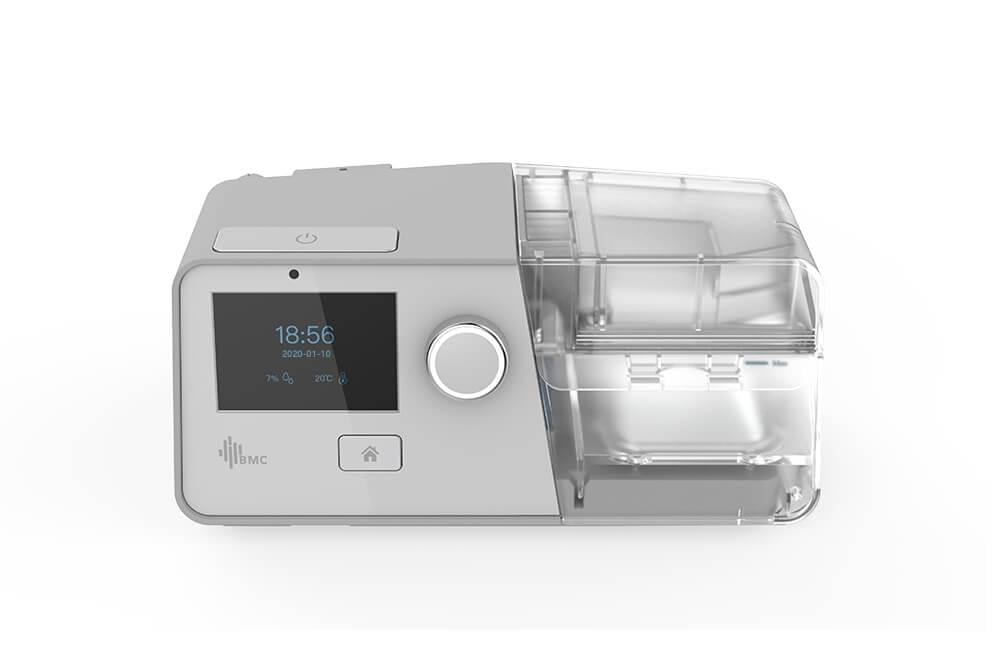

BMC G3 B30vt BIPAP Device

BMC G3 B30vt BIPAP Device

The G3 B30VT BPAP System is a Bi-level PAP (Bi-level Positive Airway Pressure) device with S/T mode with target tidal volume feature for patients with respiratory insufficiency. Target Tidal Volume Function: Optimize IPAP according to mean Vt of last 5 breathings and prescribed Target Vt.

Features :

• Maximum Work Pressure (hPa): 30
• Work Mode: CPAP, S, T, S/T
  • CPAP: Delivers Continuous Positive Airway Pressure; CPAP maintains a constant level of pressure throughout the breathing cycle.
  • S (Spontaneous): In spontaneous mode, the device triggers IPAP when flow sensors detect spontaneous inspiratory effort and then cycles back to EPAP.
  • T (Timed): In timed mode the IPAP/EPAP cycling is purely machine-triggered, at a set rate, typically expressed in breaths per minute (BPM).
  • S/T (Spontaneous/Timed): Like spontaneous mode, the device triggers IPAP on patient inspiratory effort. But in spontaneous/timed mode a “backup” rate is also set to ensure that patients still receive a minimum number of breaths per minute if they fail to breathe spontaneously.
• Auto Ramp: The new auto ramp feature senses when the user falls asleep and will adjust ramp time appropriately.
• Excellent Silence Performance: BMC uses multi-stage noise reduction technology to ensure noise performance under 26 dB
• CSA Detection: G3 uses oscillating wave technology to determine which type of apneas are best treated with changes in airflow and pressure.
• Pre-heat feature: The G3 BiPAP series has a pre-heat feature, to warm your humidifier water up for ultimate comfort during cold, dry weather.
• Leak Compensation: The device detects the leaks during treatment in real-time and adjusts the baseline to ensure correct triggering and related functions.
• Inspiratory Time Control: Ti Min and Ti-Max can be set independently to avoid insufficient ventilation due to a short inspiratory time.

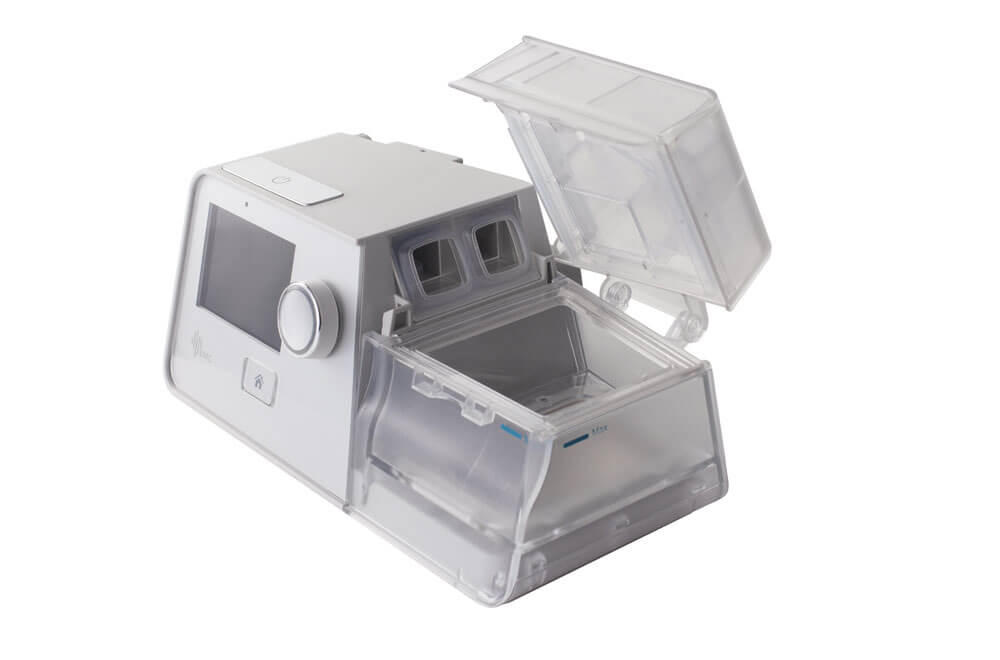

• Innovative PUSH Water Chamber: Water can be added without removing the water chamber for easy use.

Description:

• G3 Series BiPAP System (G3 B30VT) device
• Heated Humidifier
• Non Heated Hose
• Carry Case
• SD Card
• 2 Standard Filters
• Mask
